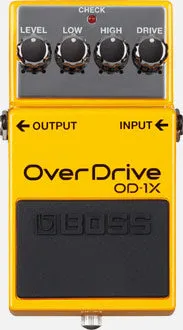

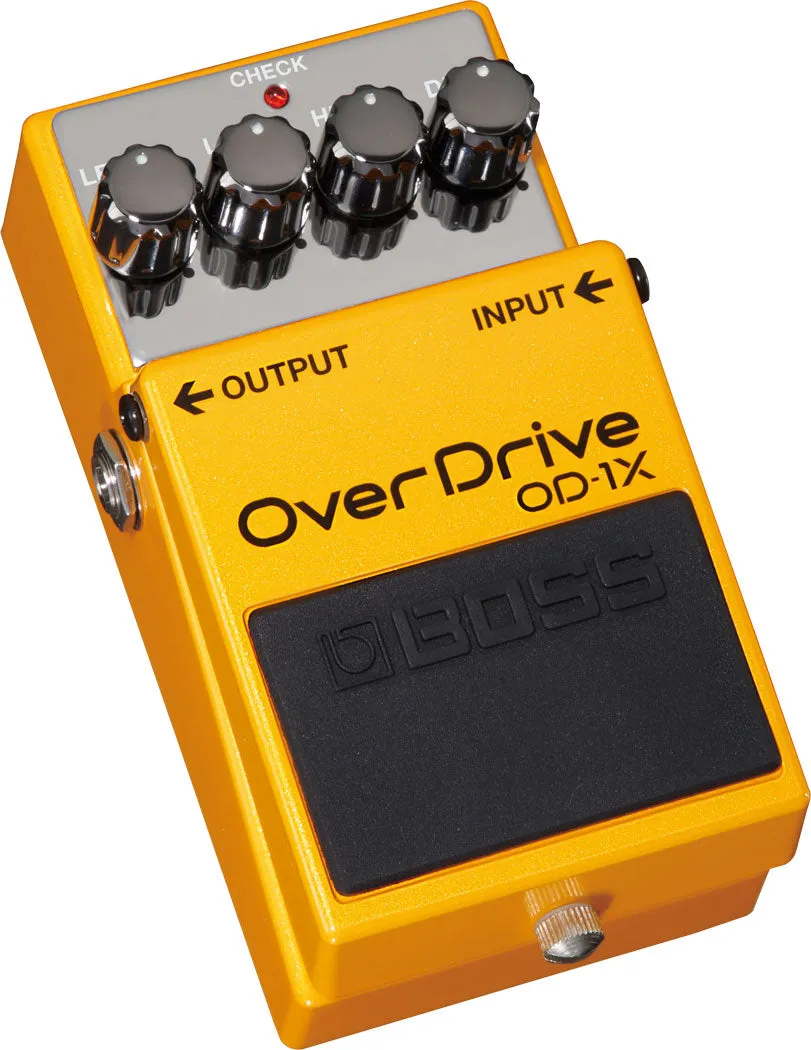

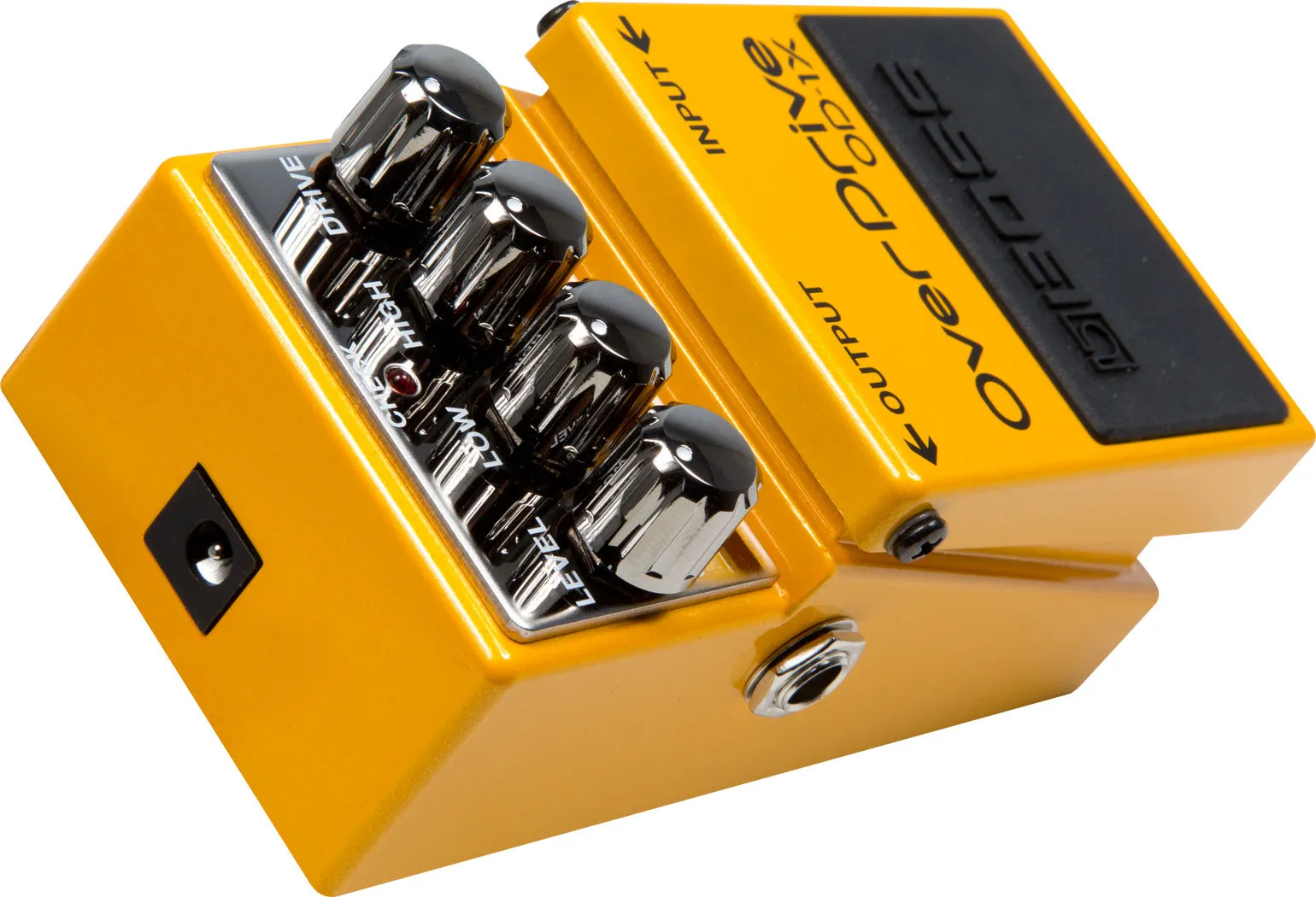

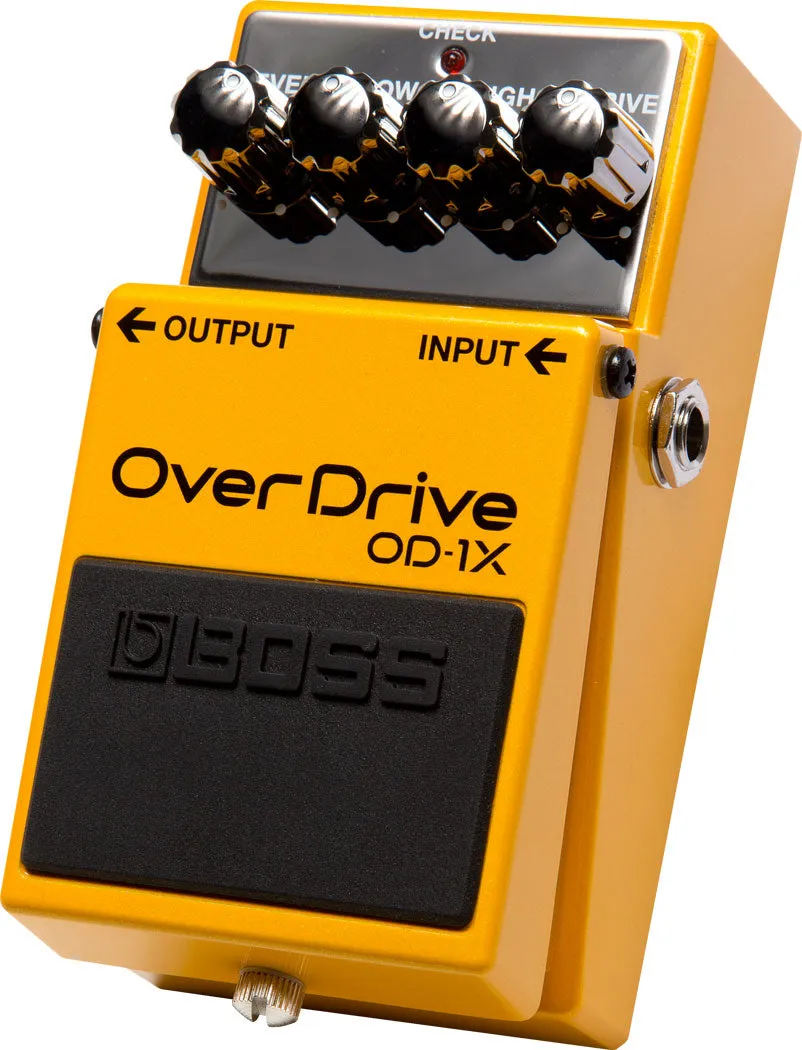

The OD-1X launches the famous BOSS overdrive into a modern era of expression, delivering an unmatched level of performance for guitarists with an ear for tone. This next-generation stomp combines over 35 years of innovation in pedal design with the most advanced technologies, bringing you a completely new tonal experience that’s only possible with the legendary expertise of BOSS. Prepare to be amazed—the inspiring and ultra-responsive OD-1X will change your thinking about overdrive pedals forever.

• Special edition BOSS overdrive pedal with next-generation sound, feel, and response
• All-new design provides a superior playing experience that’s unattainable with analog overdrive pedals
• Powerful real-time processing delivers rich, wide-range sounds with natural compression
• Bold, high-definition tone that’s also smooth and refined
• Preserves the unique tonal characteristics of different guitars and pickup types
• Very low noise, even with high-gain settings
• Drive, High, and Low knobs offer a wide range of sound shaping not found in typical stompbox pedals

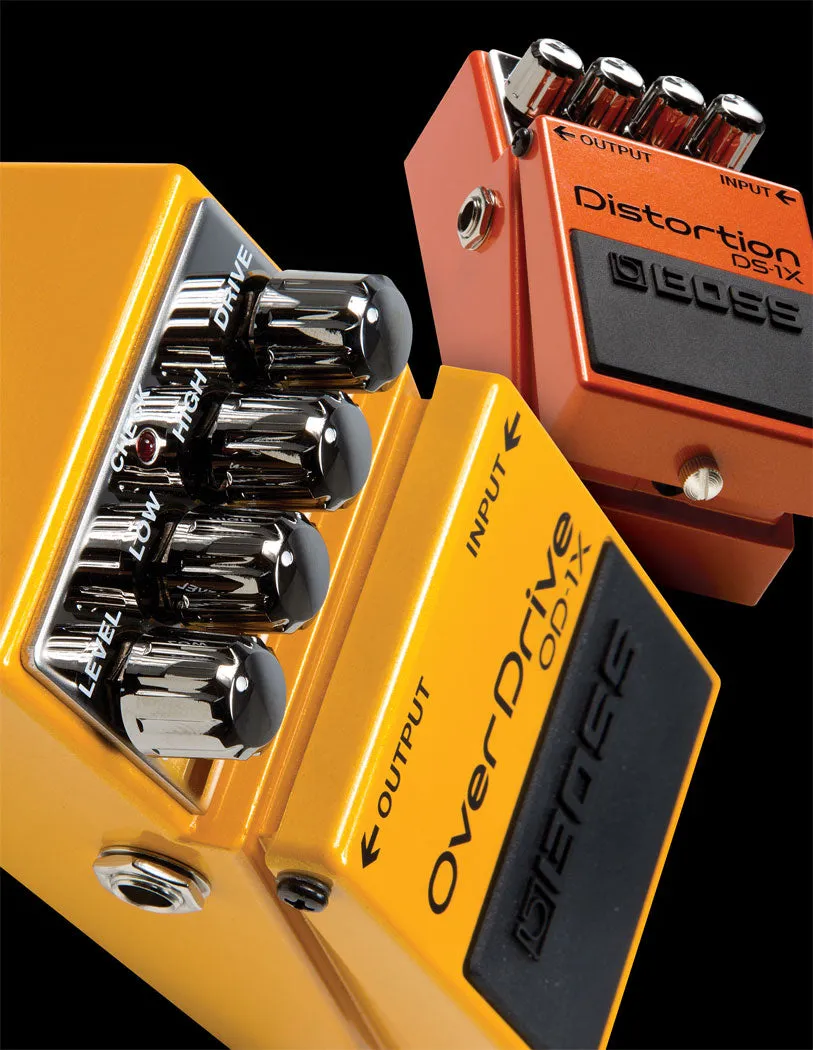

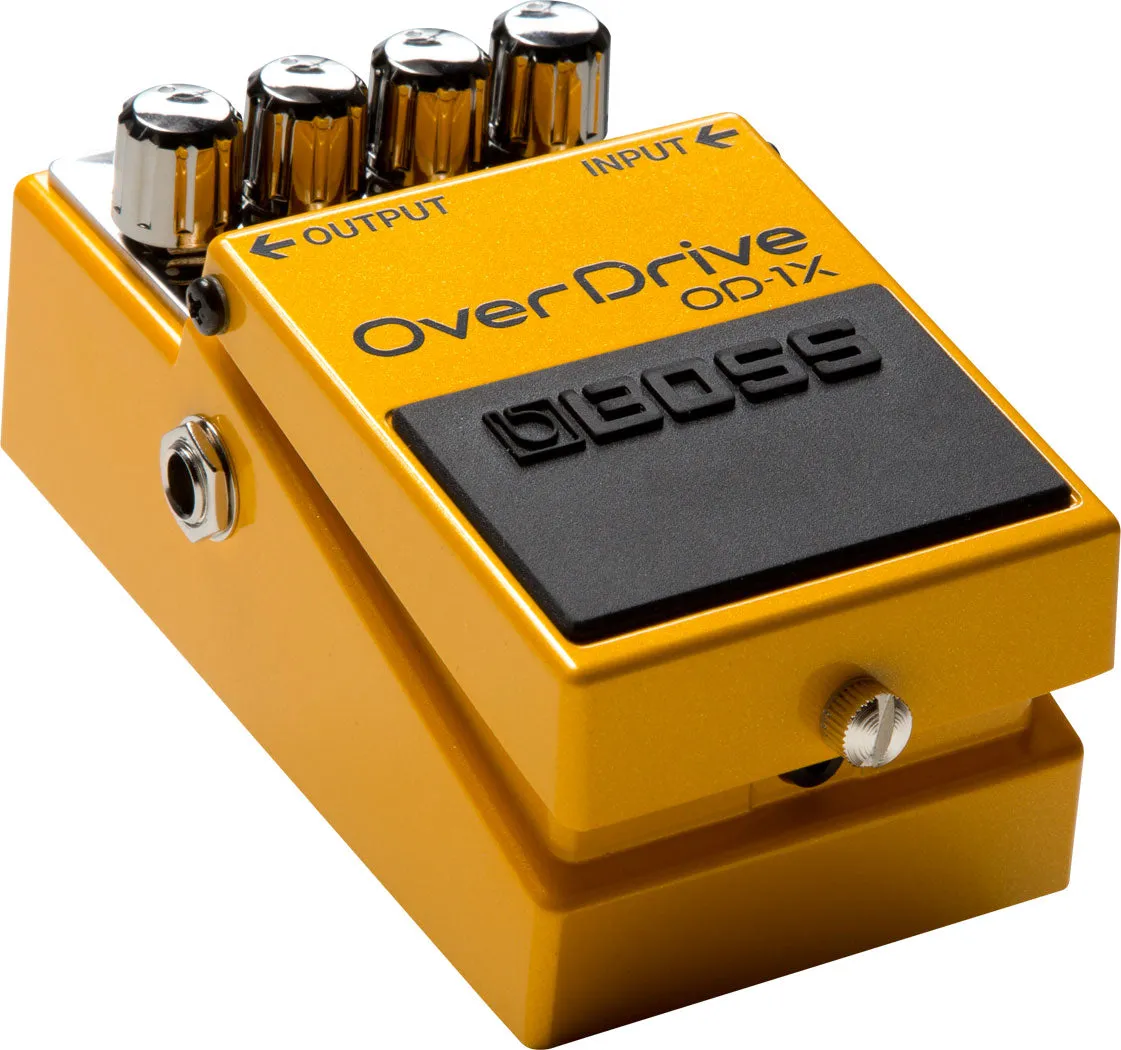

• Striking appearance with exclusive chrome knobs and control plate, plus vintage silver knob for battery compartment access
• Features BOSS’ innovative Multi-Dimensional Processing (MDP), realized with proprietary technology and custom DSP
• BOSS five-year warranty

Plug Into the Ultimate Overdrive Experience

The OD-1X delivers overdrive unlike any pedal ever made, with an all-new dimension of sound quality, clarity, and tonal range. Thanks to BOSS’ magical MDP technology, every note on the fretboard sounds flawless, with fat tones when riffing leads and a smooth, transparent grind when playing chords. At every setting, you’re welcomed with wide-range sounds and a complex, refined presence that’s both cutting and smooth. The sound character and overdrive amount naturally follow your picking dynamics, putting a world of subtle tonal changes under your fingers. When playing through the OD-1X, the tone is so big, bold, and responsive that you’ll soon forget you’re plugged into a compact overdrive pedal.

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

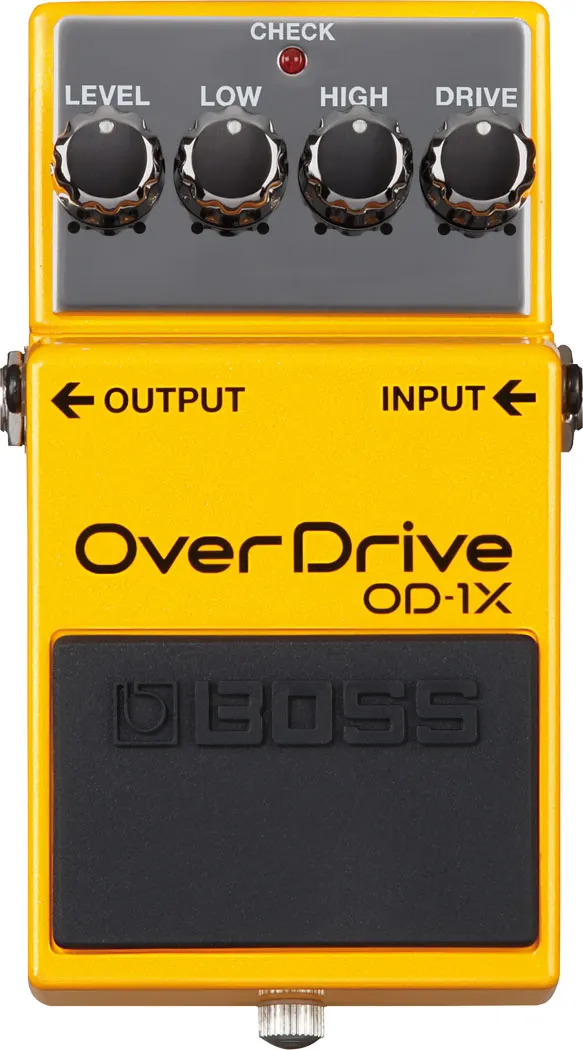

Controls

Pedal switch
LEVEL knob
LOW knob
HIGH knob
DRIVE knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack
OUTPUT jack
AC adaptor jack (DC 9 V)

Power Supply

Alkaline battery (9V, 6LR61)
AC adaptor (sold separately)

Current Draw

65 mA

Expected battery life under continuous use

Alkaline: Approx. 6 hours
* These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)

Option (sold separately)

AC adaptor (PSA series)

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight

440 g
1 lb

* 0 dBu = 0.775 Vrms
