Passionately designed by the master engineers at BOSS in Japan, the Waza Craft SD-1W Super Overdrive delivers a premium stomp experience that fans of customized pedal tone will love. Crafted with an ear for highly refined sound, the SD-1W hot rods the famous BOSS overdrive with all-discrete analog circuitry. Standard mode captures the classic SD-1 sound while Custom mode offers new tonal range and gain.
- Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
- Premium sound based on the legendary SD-1 Super Overdrive
- Newly revised, all-analog discrete amplifier circuit
- Standard and Custom sound modes
- Highly responsive to picking dynamics and volume changes
- BOSS five-year warranty
Waza Craft: The Art of Superior Tone
Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, we are pleased to introduce the new Waza Craft series. In Japan, “Waza” is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. With final sound approval carried out by BOSS in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully-selected analog components, refined circuitry, and meticulous attention to detail.
- Specifications
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater

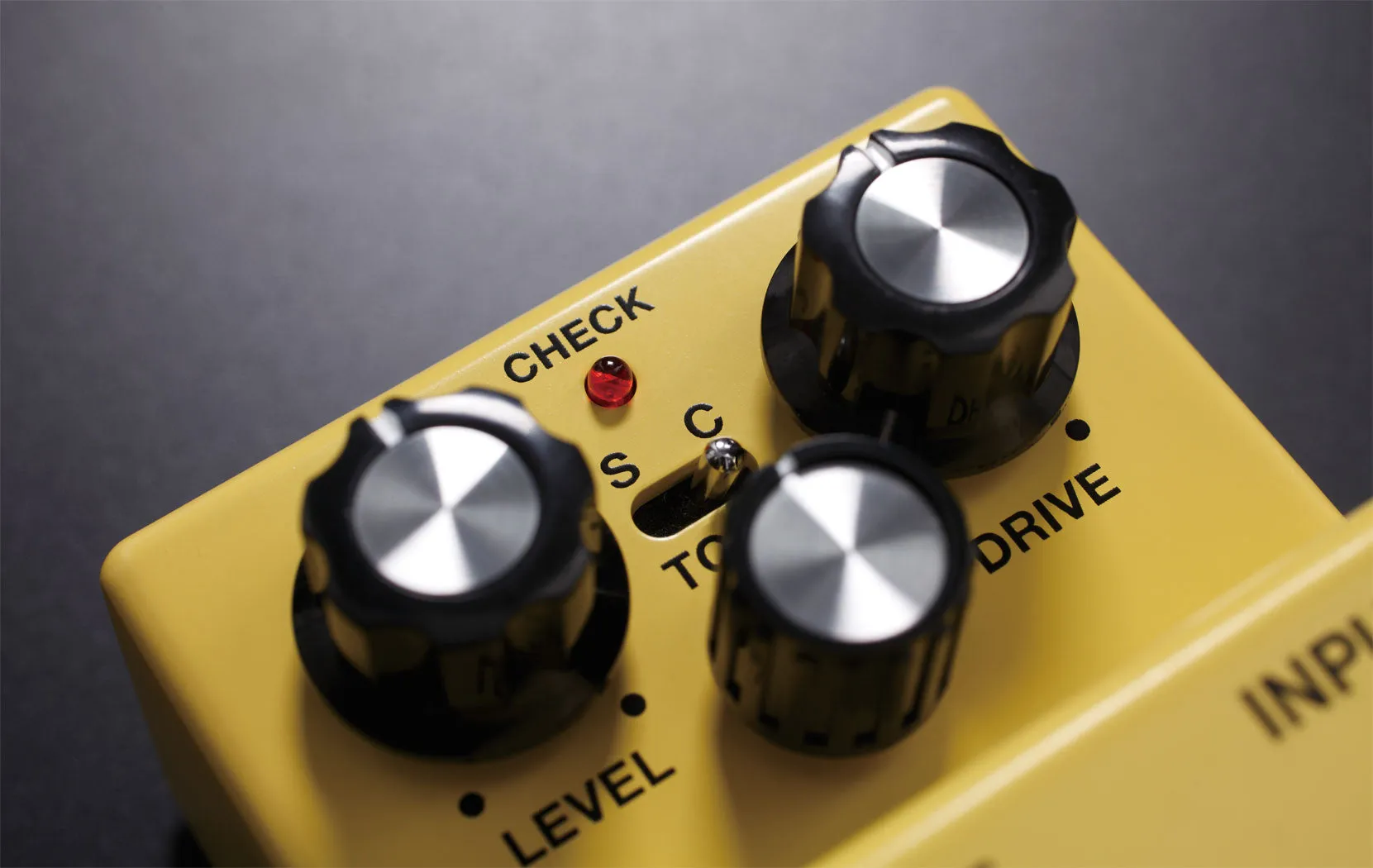

- Controls
- Pedal switch
Mode switch
LEVEL knob
TONE knob
DRIVE knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack
OUTPUT jack

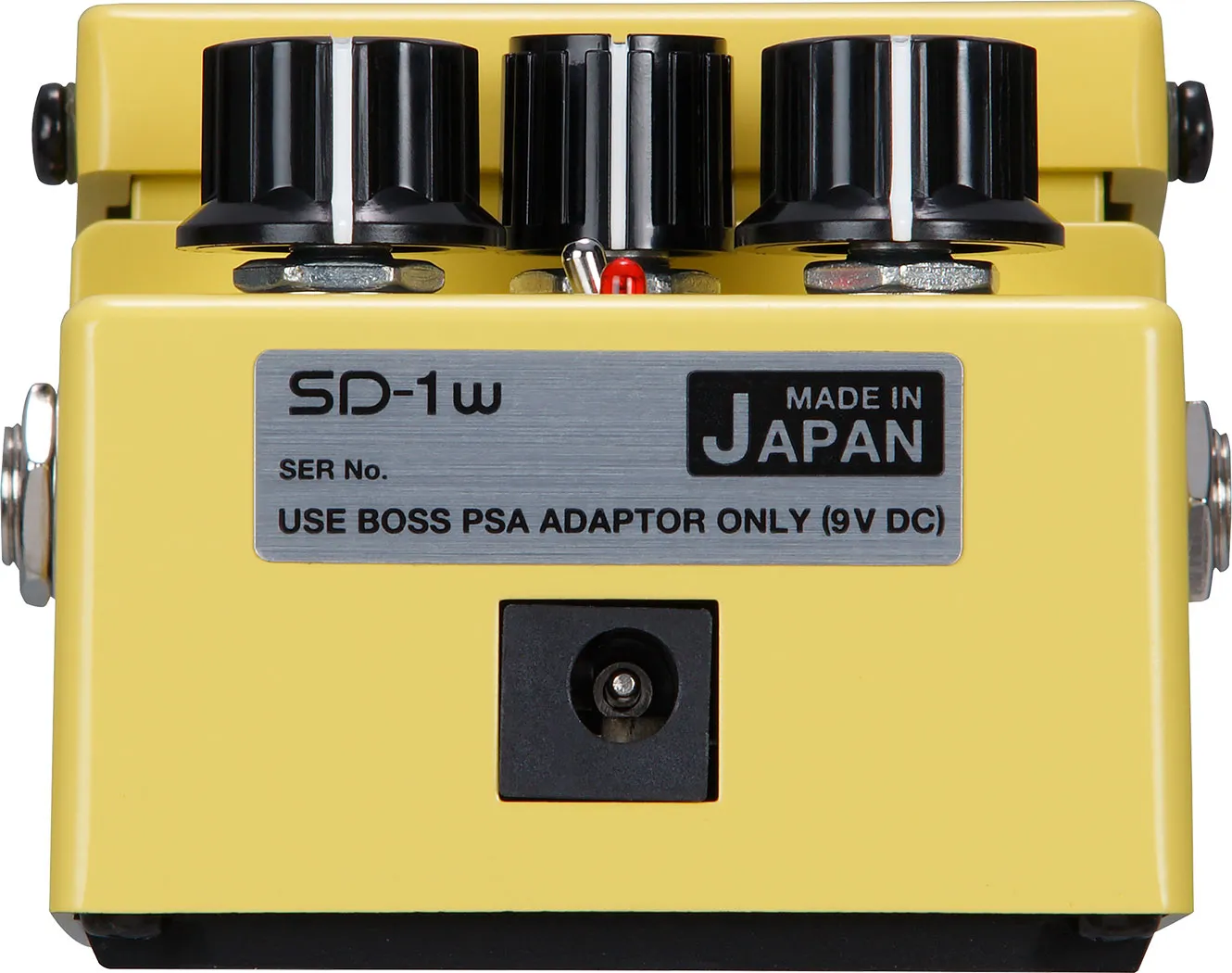

DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (sold separately) - Current Draw
- 15 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Carbon: Approx. 25 hours
Alkaline: Approx. 42 hours - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Carbon-zinc battery (9 V, 6F22) - Option (sold separately)
- AC adaptor (PSA series)
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight
- 430 g
1 lb - * 0 dBu = 0.775 Vrms
