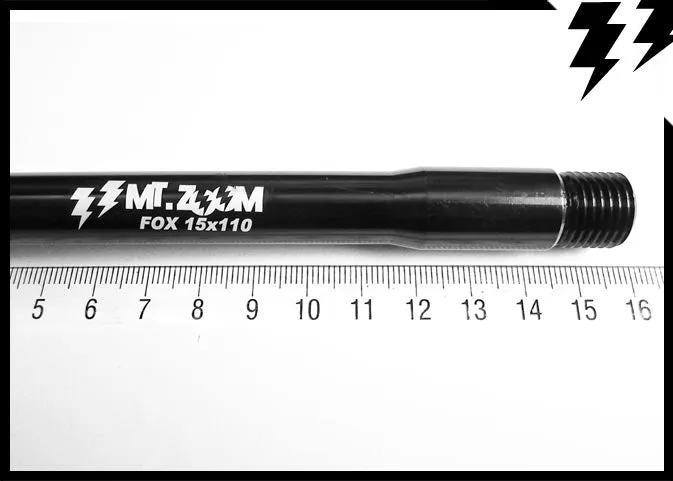

MT ZOOM Fox & Rock Shox style front boost thru axles. Simple, light, strong and excellent value. Ultralight at only 37g (excl. washer).
Thread pitch 1.5mm. Length from inner washer to end of thru axle: 156.5mm
2-year warranty
[split]

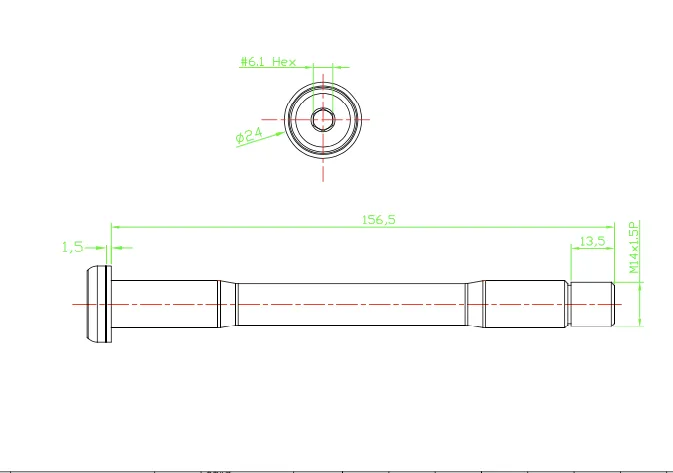

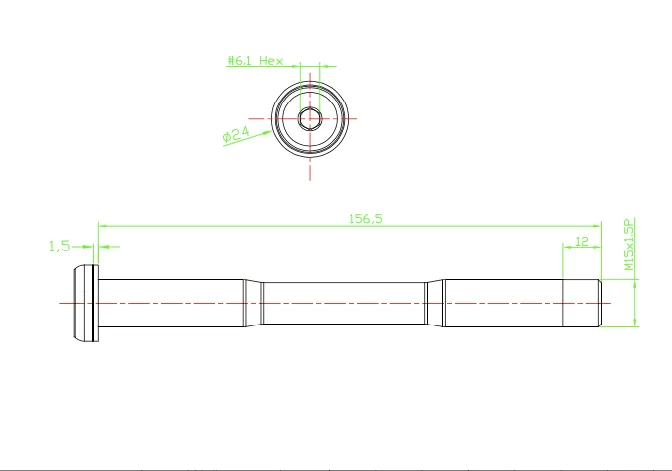

Key technical measurements:

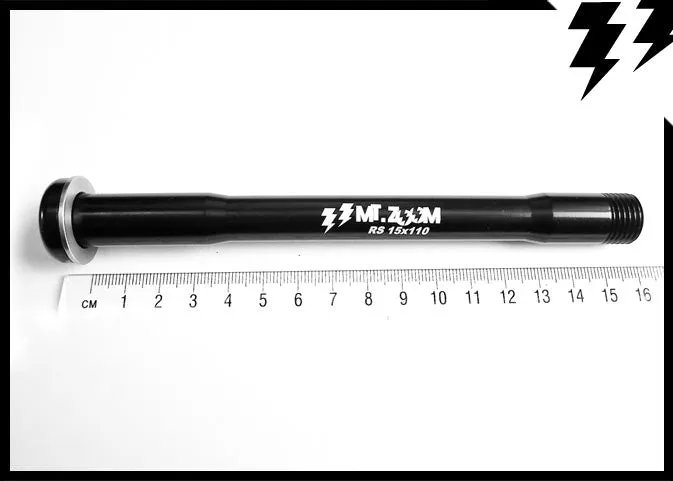

Length from inner washer to end of thru axle: 156.5mm
Thread pitch 1.5mm
Thread area length: Fox 13.5mm / Rock Shox 12mm
Inner axle maximum width: 15mm
Washer width: 1.5mm
Anodised black
7075 Aluminium

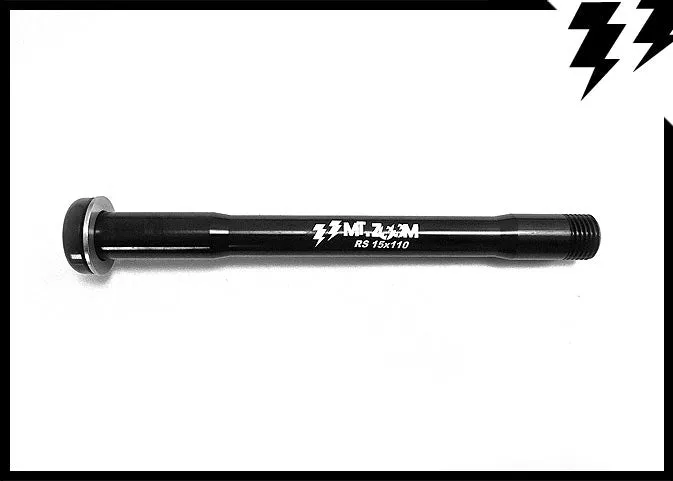

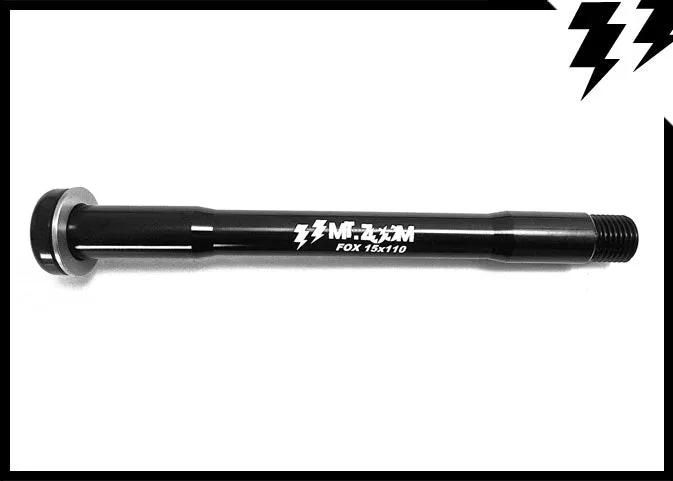

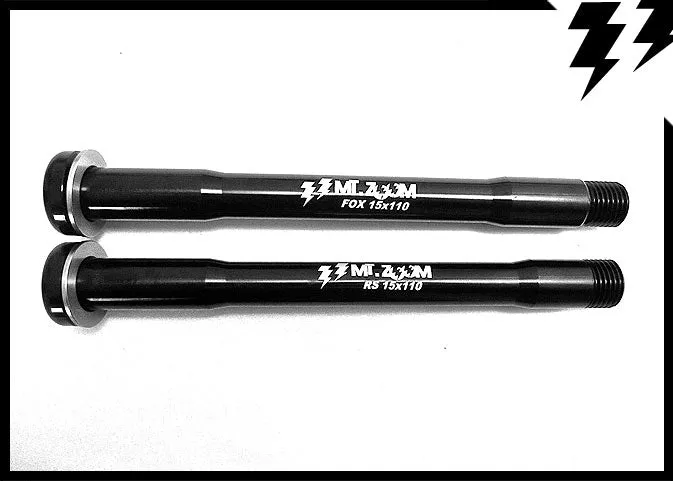

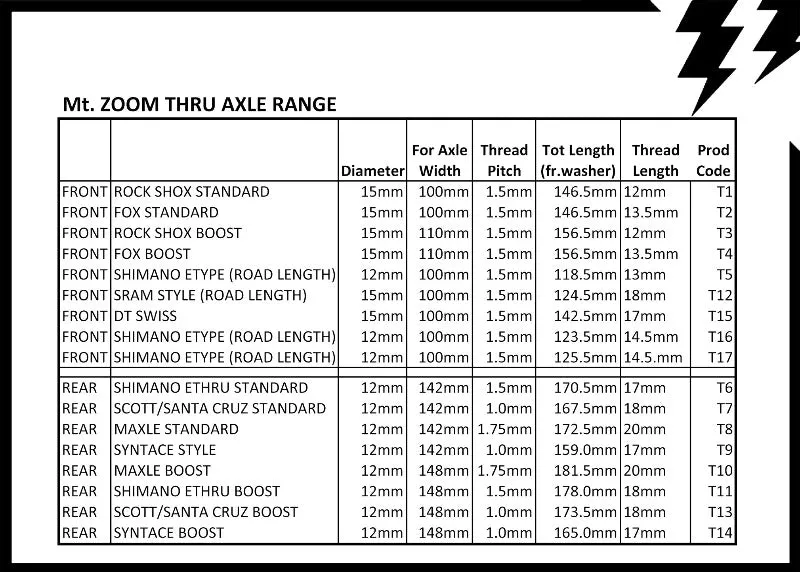

Product Codes: Rock Shock Boost T3 / Fox Boost T4
[split]
The 1.5mm washer helps protect the paint on your frame/for drop out - its use is optional, removing it gives extra length to the axle.
Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM).
