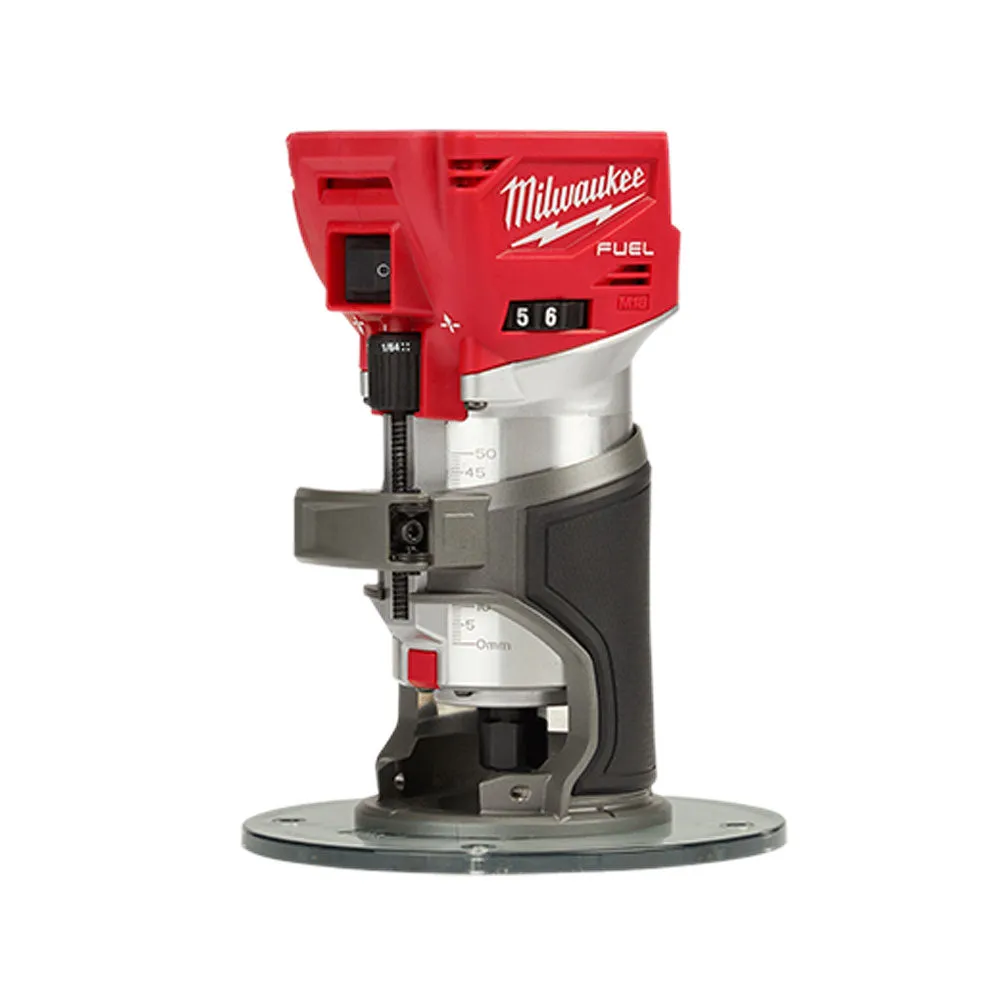

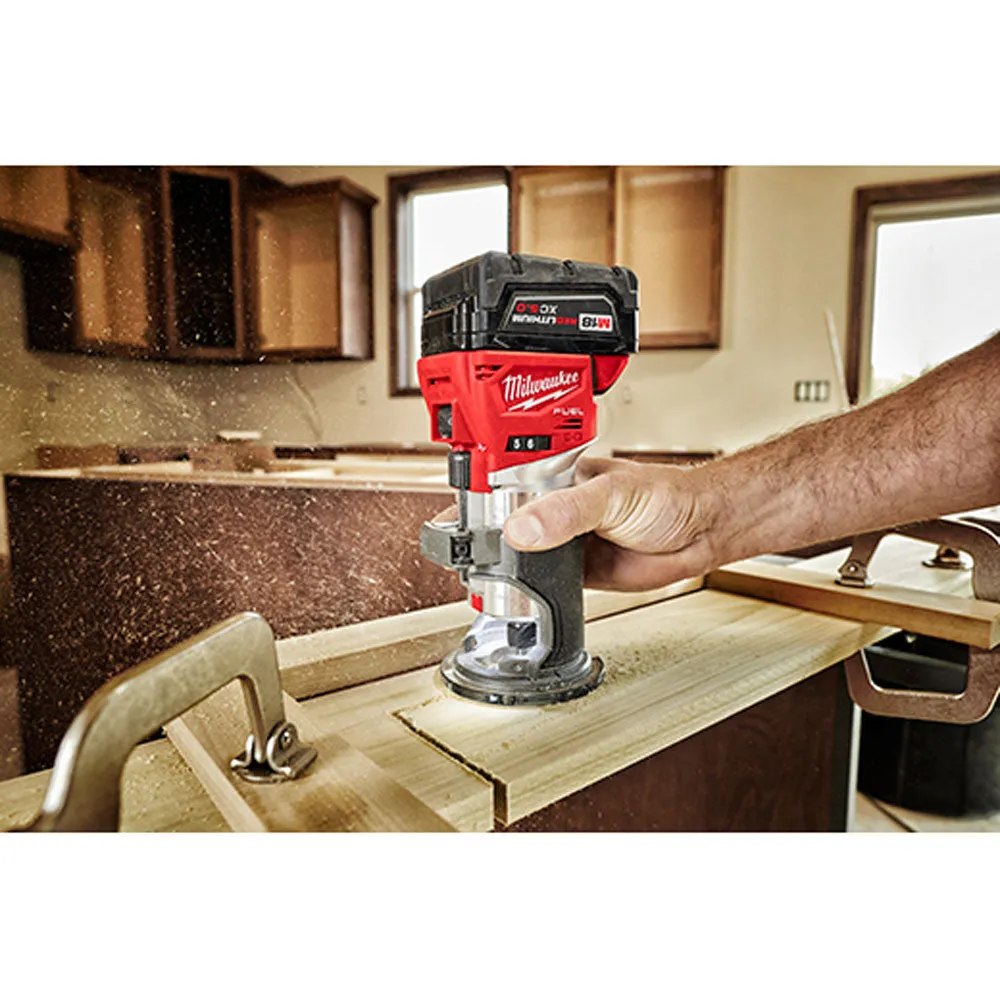

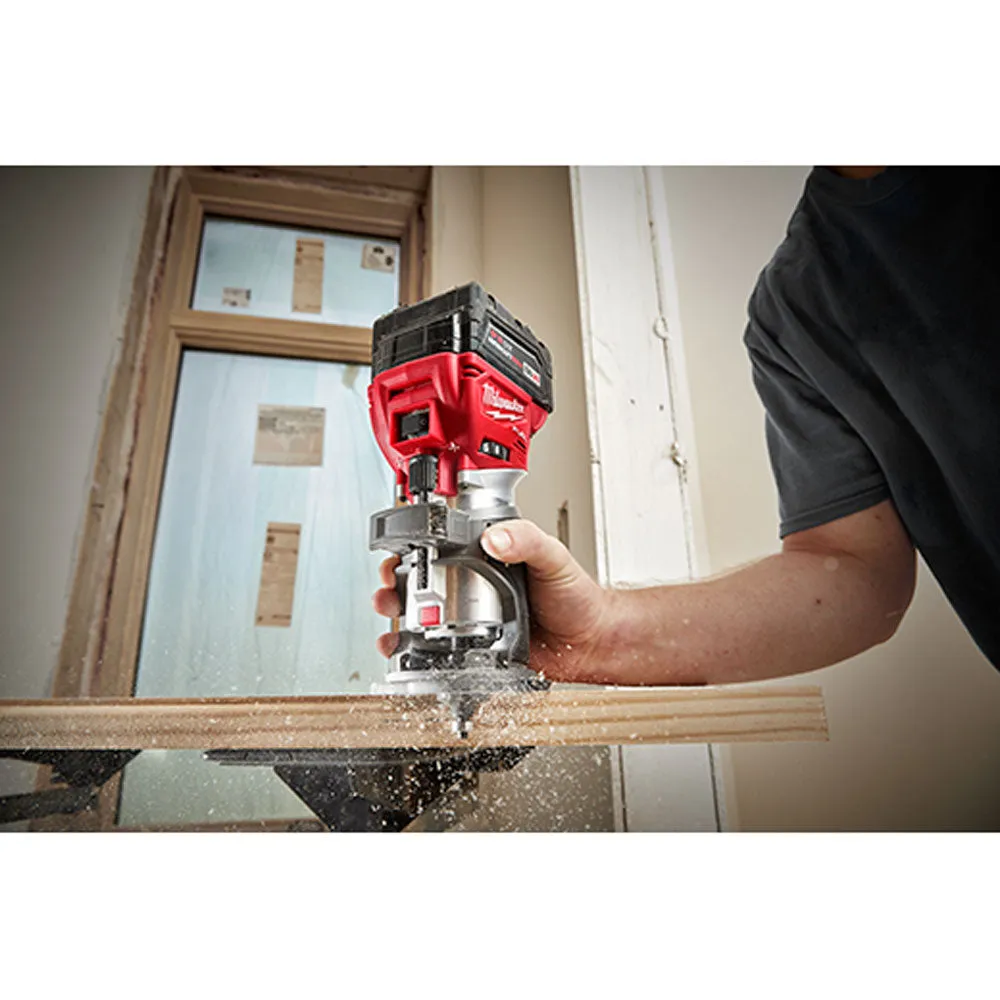

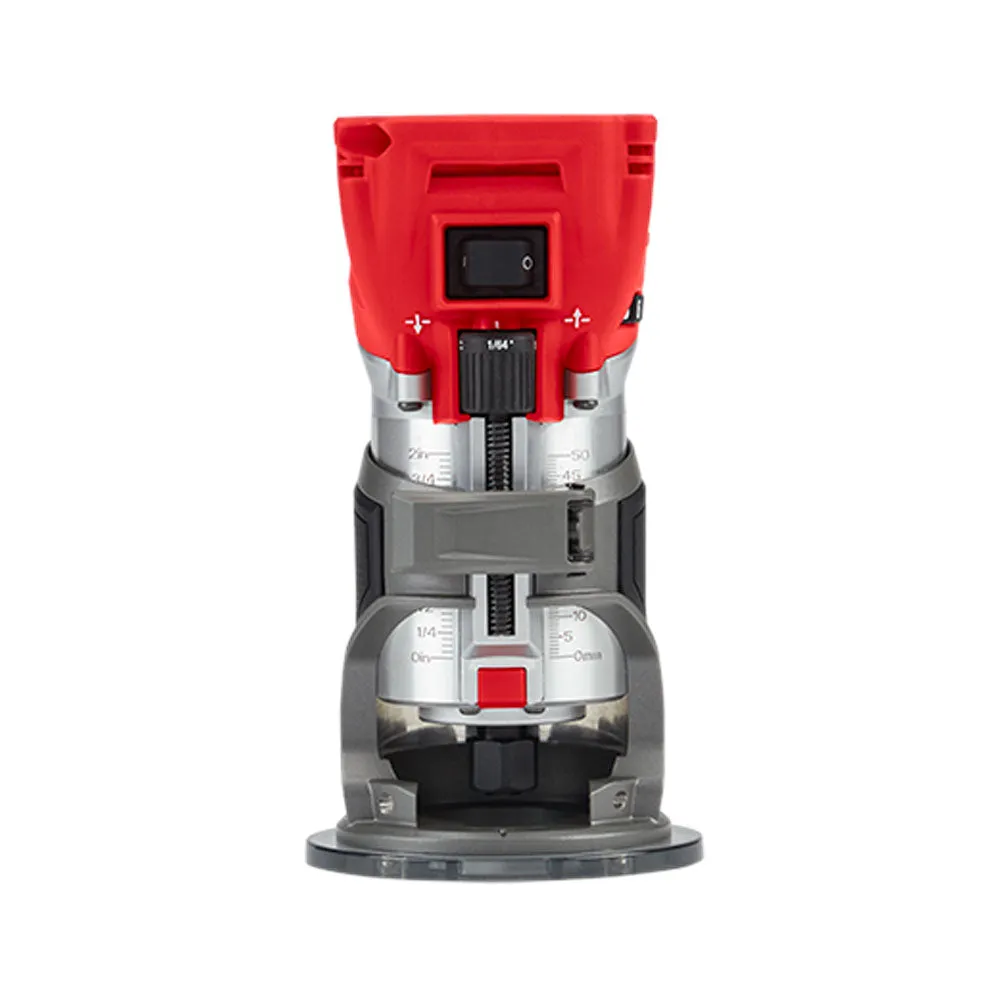

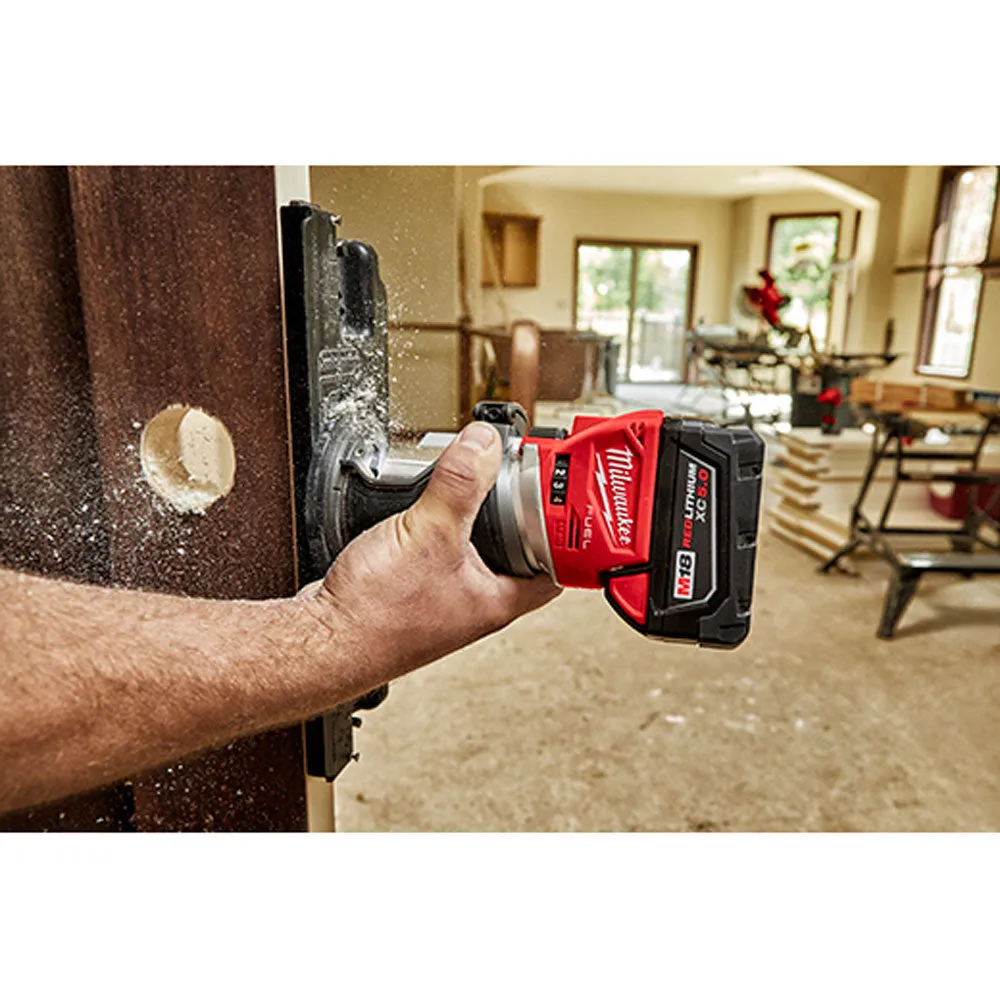

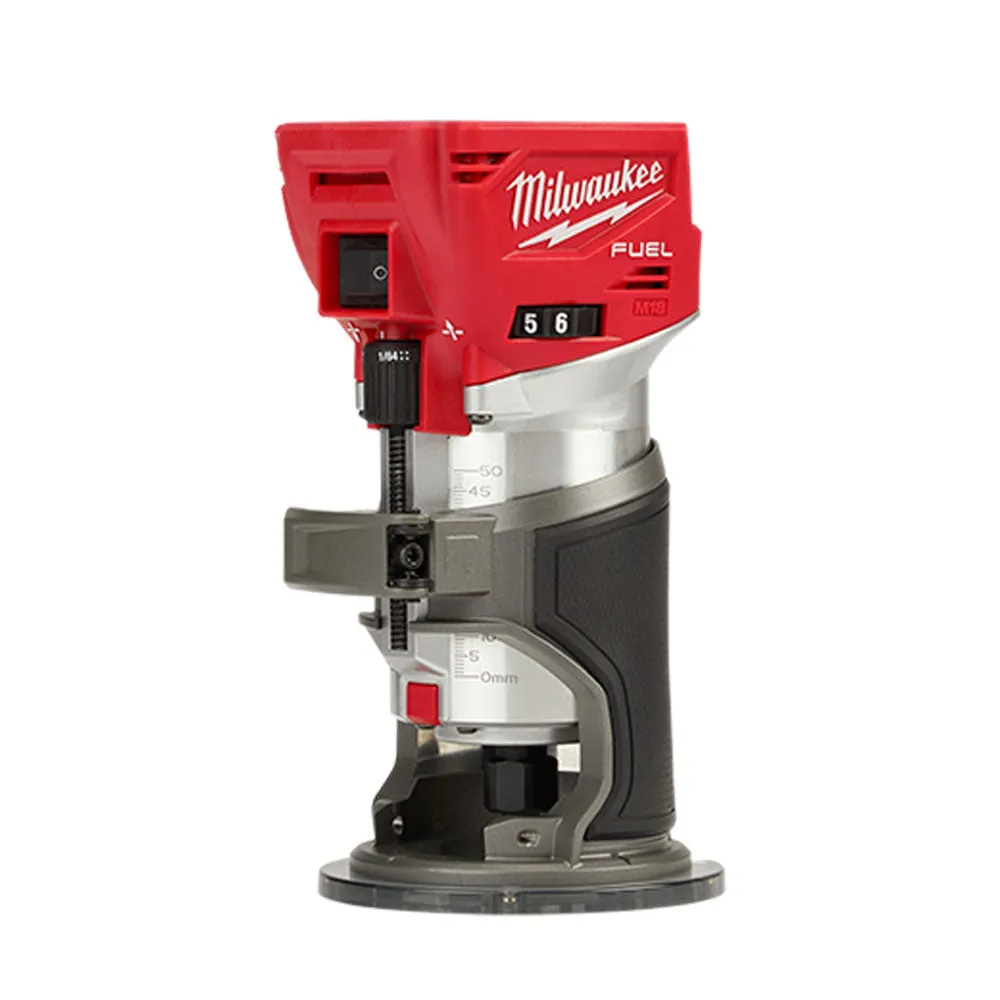

The M18 FUEL™ Compact Router combines power, speed and accurate depth adjustments to deliver clean accurate cuts in a variety of materials and applications. The compact router leverages our POWERSTATE™ Brushless Motor and REDLINK PLUS™ electronics. This delivers the power of corded 1.25 horsepower trim routers and best-in-class 31,000 RPM providing you with power and speed for clean, quality cuts in hard materials. With our M18™ REDLITHIUM™ XC5.0 battery, the cordless compact router cuts up to 250ft of 3/8" roundovers in red-oak, providing you with all-day run time with fewer trips to the charger. The handheld router is equipped with a micro-adjust dial and macro-adjust button, providing you with fast and accurate depth adjustments for highly accurate work. A variable-speed dial with speed from 10,000 to 31,000 RPM gives you control in all applications. The compact router also features a sturdy 4" sub-base plate providing you with stability, and dual-LED lights illuminate your work surface. The M18 FUEL™ Compact Router is compatible with a plunge base and an offset base (sold separately).
Features
- POWERSTATE ™ Brushless Motor: Power of corded compact routers and higher SPM to complete cuts in hard woods
- REDLITHIUM™ Battery Pack: Delivers more work per charge and more work over the life of the pack than competitors

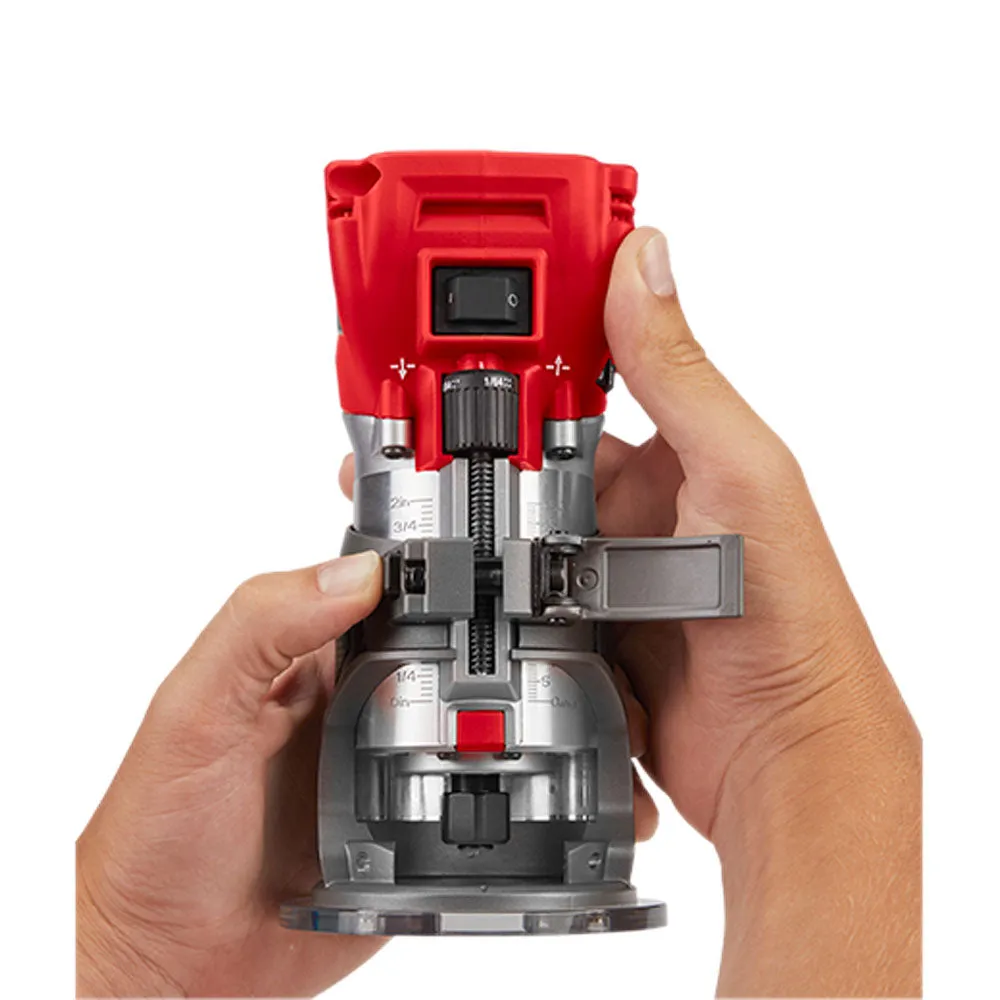

- Macro Adjust button allows for fast macro-adjustments and 1.5" of adjustable range

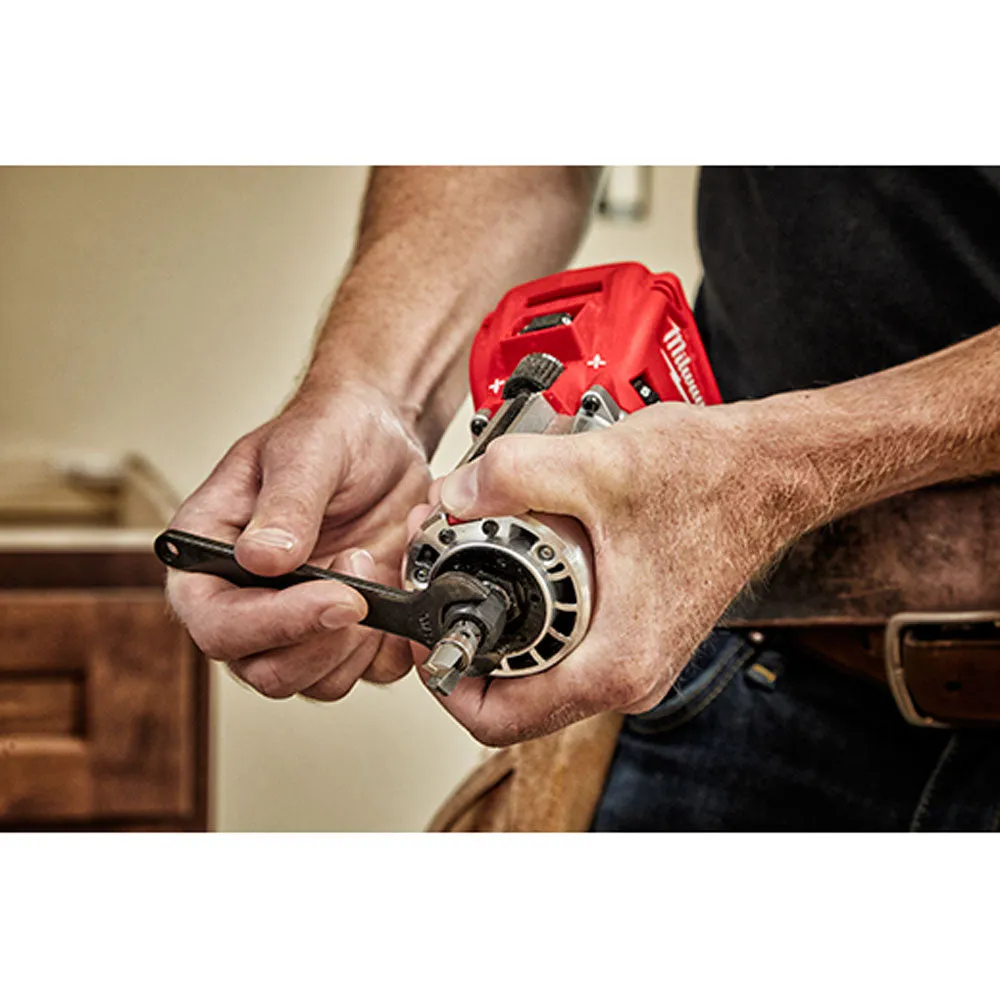

- Tool-free spindle lock provides easy bit changes with one 11/16" collet wrench
- Compatible with Milwaukee Plunge base and Offset base attachements (sold separately)
- Part of the M18 System, featuring over 200 tools
- REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
- Variable speed dial ranges between 10,000 and 31,000 RPM, providing precise control for clean edges and details

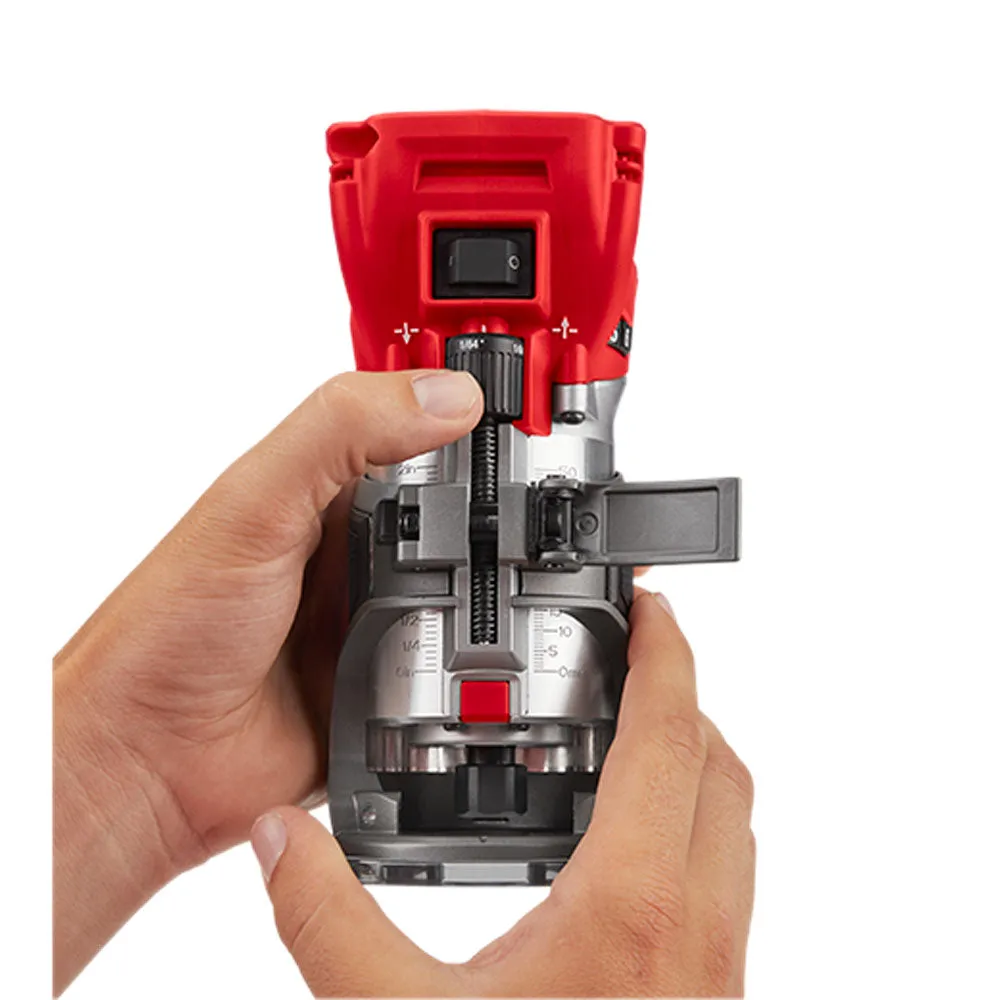

- Fine adjustment screw allows for precise adjustments beyond 1/64" increments
- Accepts 1/4" Shank router bits LED light illuminates the cut surface
- Includes straight edge guide; dust extraction attachment and 5-3/4" sub-baseplate which accepts 1-1/4" template bushings
CORDED PERFORMANCE
- Generates 1.25 peak Horsepower when paired with an M18™ REDLITHIUM™ XC5.0 Battery
- 10,000-31,000 RPM
FAST ACCURATE ADJUSTMENTS
- More Precise Cuts
- Micro-Adjustment Button prevents slop
CUTS UP TO 250 FT PER CHARGE
- Longer Run Time
- 250 FT of 3/8" Roundover when using an M18 REDLITHIUM ™ XC5.0 Battery
Includes
- (1) M18 FUEL™ Compact Router (2723-20)
- (1) 1/4" Collet; 4" Round Sub-base Plate;
- (1) 5-3/4" Template Sub-base plate
- (1) 11/16" collet wrench(1)7/16" Spindle wrench

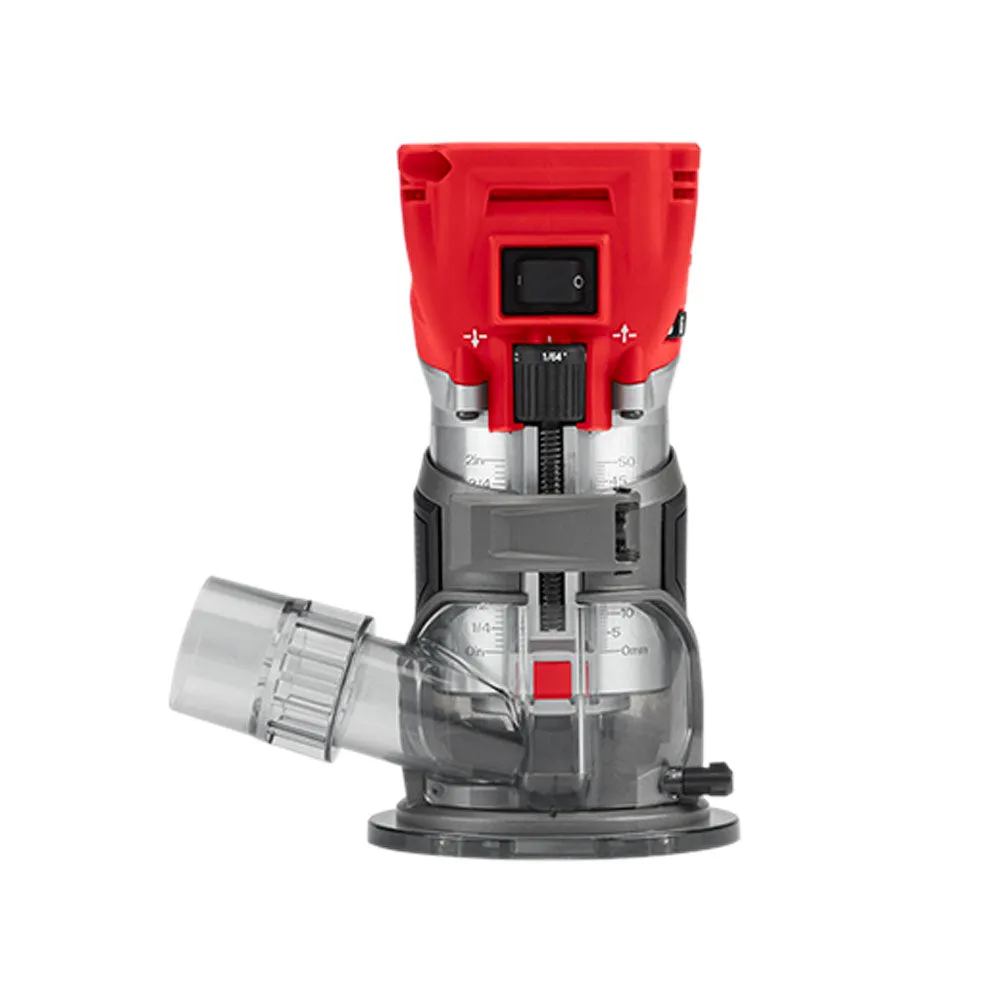

- (1) Dust Shroud
- (1) Fixed Base

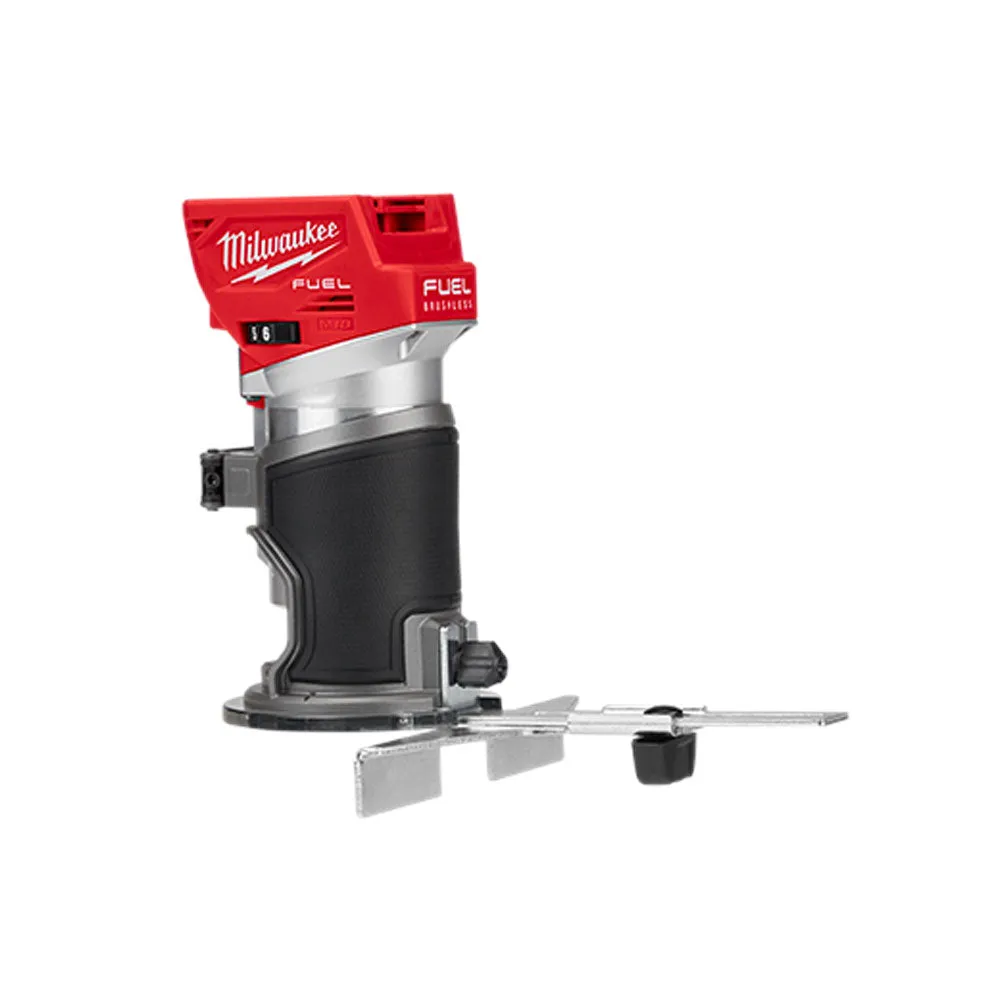

- (1) Straight Edge Guide
