Powered and ready for the road!

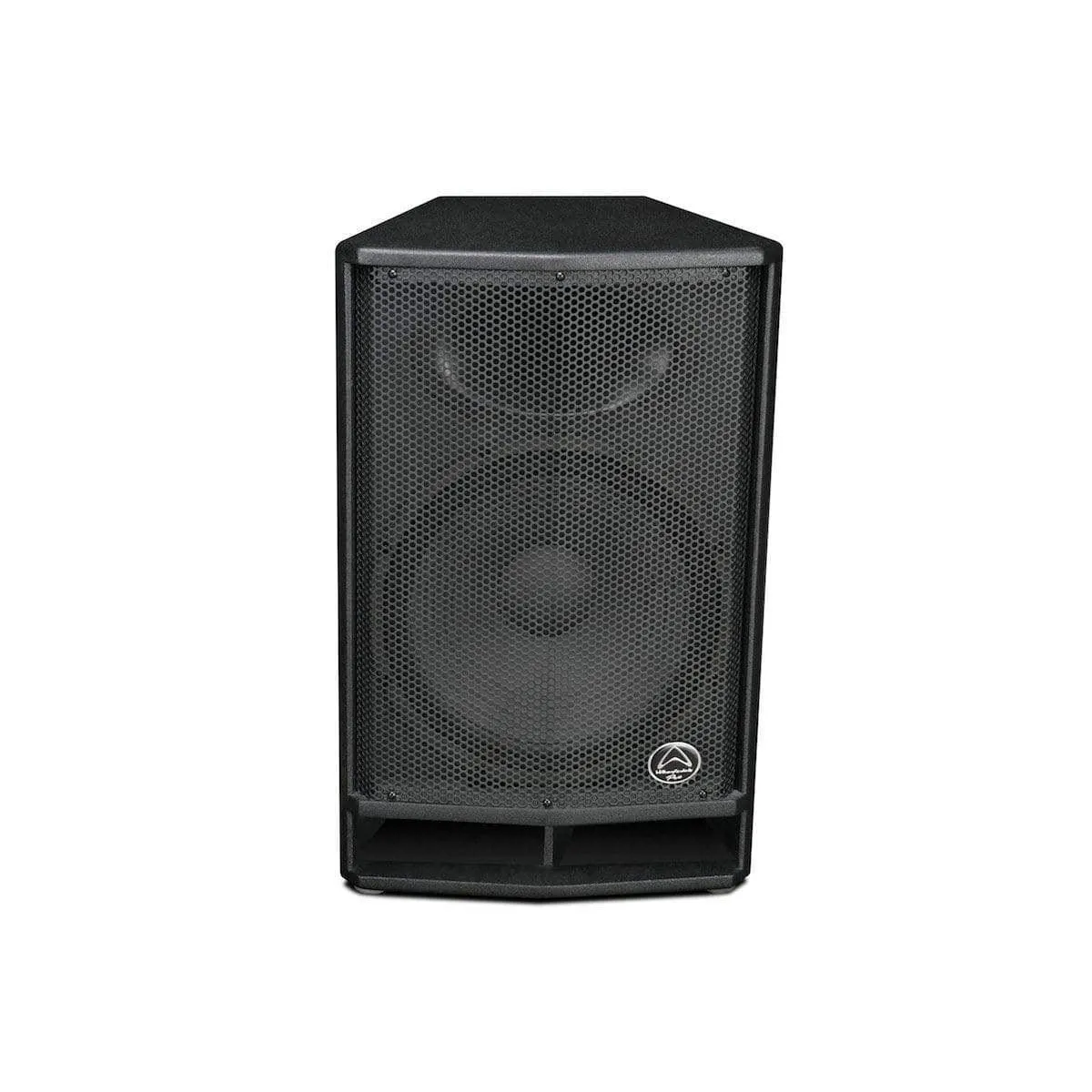

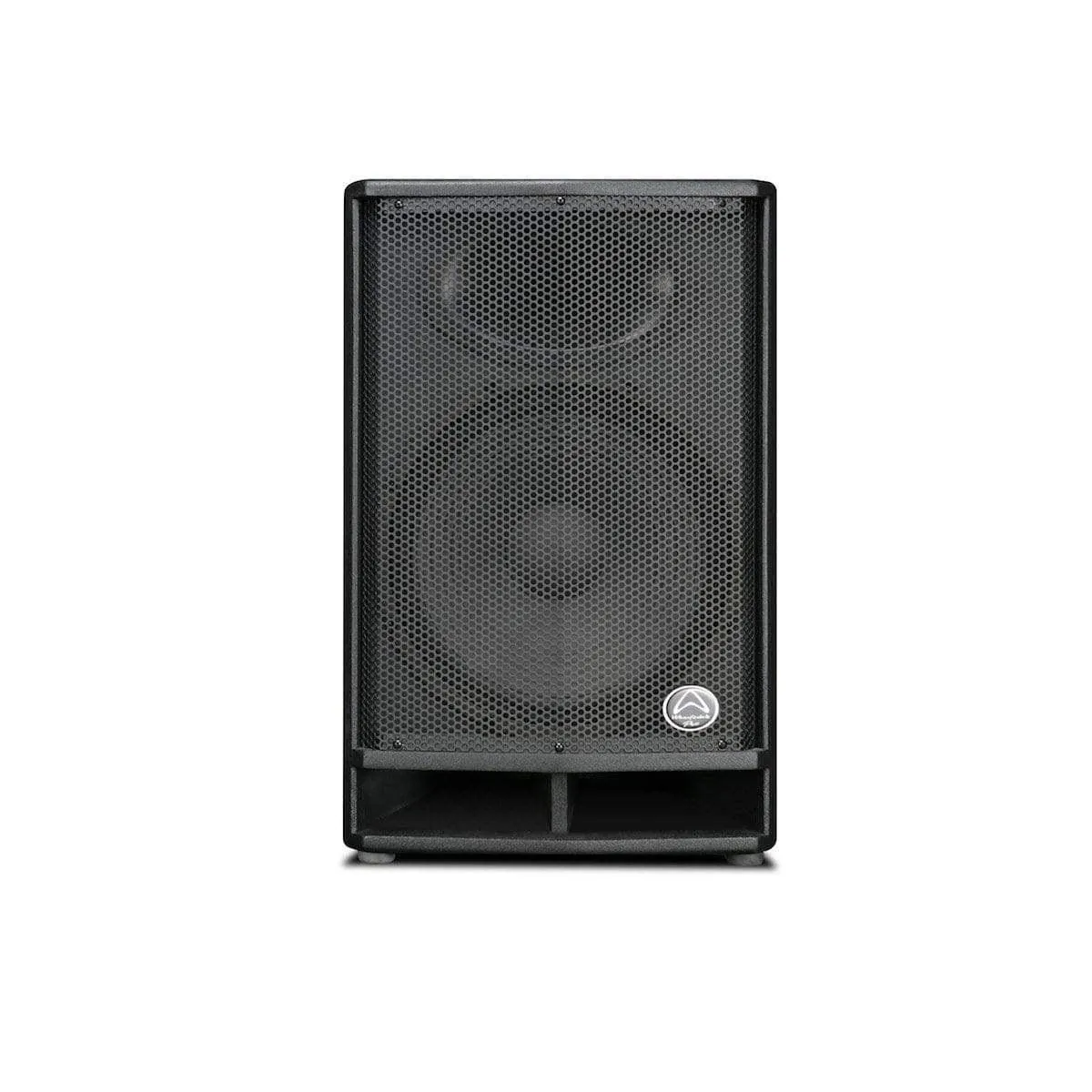

DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard-wearing cabinets makes DVP-AX a perfect choice for hardworking DJ's and musicians on the road. DVP-AX15 features advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges. DVP-AX15 also features a practical 2-channel mic/line mixer to make life a lot easier on-stage.
FEATURES
- 15" Active 2-way
- MDF construction
- IRIS X Compression driver
- Bi-amplified with 2 Class D amps
- 400w RMS
- 90" x 60" dispersion
- 130dB Max SPL @1m
- position internal DSP
- 2 channel mic/line mixer
- Custom dual layer LF driver
SPECIFICATION
| System type | Active 15″ 2-way |
| Frequency response ( /-3dB) | 50Hz-18kHz |
| Frequency range (-10dB) | 45Hz-20kHz |
| Max SPL @ 1m | 130dB |
| Sensitivity @ 1w / 1m | 98dB |
| LF Transducer | |
| Size | 381mm / 15″ |
| LF voice coil size | Dual layer 2.5″ |
| HF Transducer | |
| Type | Compression driver |
| HF coil size | 44mm / 1.75″ |
| HF Exit size | 25mm / 1″ |
| HF Diaphragm material | Titanium |
| Nominal coverage | 90° x 60° |
| Amplification | |
| LF Power Amplifier -Class D, RMS/Peak Watts | 350w / 700w |
| HF Power Amplifier -Class D, RMS/Peak Watts | 50w / 100w |
| DSP | Yes |
| DSP controls | 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE |
| Amplifier Protection. Power On, Thermal, low voltage | Yes |
| Driver Protection, DC, Short, Clip limiter, clip indicator | Yes |
| Limiter indicator | Red LED |
| Power indicator | Green LED (Red LED front) |
| Inputs | |
| Input sensitivity : Balanced | 775mv |
| Max input level | 4v |
| Input connectors | 2*XLR & 2*1/4″ (Line/MIC) |
| Input impedance | Balanced : 20k |
| AC Power | SMPS |
| 220-240V 50/60Hz | |
| 100-120V 50/60Hz | |
| Pole socket | Dual-angle (0° or -10°) 35mm socket |
| Handles | 2 (one on each side) |
| Enclosure material | MDF / Black paint |
| Grille material | Steel |
